Loading and checking data

Good to know

tools4watlas is based on data.table to be fast and efficient. A key feature of data.table is modification in place, where data is changed without making a copy. To prevent this (whenever it is not desired) use the function copy() to make a true copy of the data set. Basic knowledge about data.table is helpful, but not necessary, when working with tools4watlas.

# packages
library(tools4watlas)
library(ggplot2)
library(scales)
library(viridis)

Getting data

WATLAS data can either be loaded from a local SQLite database or a remote SQL database server. To do so, first select the tags and time period for which to extract data.

Use the tags_watlas_all.xlsx file (including metadata of all tags) or for collaborators the tags_watlas_subset.xlsx (including a subset of metadata) to select the desired tags. Here shown with the example data in tools4watlas.

Loading the tags_watlas_subset.xlsx will provide a table with the following columns:

Column	Description
season	Year in which the bird was caught
species	Species common name
tag	Tag ID with 4 digits
rings	Metal ring number
crc	Colour ring combo
release_ts	Release time stamp in CET
catch_location	Location where the bird was caught

Select the desired tags and time period

# file path to the metadata
fp <- system.file(
  "extdata", "tags_watlas_subset.xlsx", package = "tools4watlas"
)

# load meta data
all_tags <- readxl::read_excel(fp, sheet = "tags_watlas_all") |>
  data.table()

# subset desired tags using data.table
# (for example all tags from season 2023)
tags <- all_tags[season == 2023]$tag

# time period for which data should be extracted form the database (in CET)
from <- "2023-09-21 00:00:00"
to <- "2023-09-25 00:00:00"

Extract data from local SQLite file

First, the path and file name of the local SQLite database need to be provided. Then, with the established connection, the database can be queried for the selected tags and period. Here we will load the tagging data in one data.table.

# database connection
sqlite_db <- system.file(
  "extdata", "watlas_example.SQLite", package = "tools4watlas"
)
con <- RSQLite::dbConnect(RSQLite::SQLite(), sqlite_db)

# load data from database
data <- atl_get_data(
  tags,
  tracking_time_start = from,
  tracking_time_end = to,
  timezone = "CET",
  use_connection = con
)

# close connection
RSQLite::dbDisconnect(con)

Alternatively, extract from remote SQL-database

To safely work with database credentials one option is to store them as environmental variables in R. This allows for example to have scripts on GitHub without sharing them. Restart R after adding variables to be able to access them. Ask Allert for the host, username and password and then add them in your environment like this:

# open .Renviron to edit
file.edit("~/.Renviron")

# add variables
host = "host"
username = "username"
password = "password"

# access variables (example)
Sys.getenv("variable_name")

atl_get_data does the same as when connecting to a local SQLite database when connecting to a remote database. In this example (chunk not run and only shown) we load the last three days of data from all tags of season 2024. Host, username and password are specified as environmental variables in this example, but can also be specified directly.

Since we want the up to date metadata we load the tags_watlas_all.xlsx from the “WATLAS” SharePoint folder: Documents/data/. Either specify the path to your local copy of this folder or add the path for your user in the atl_file_path() function.

# file path to WATLAS teams data folder
fp <- atl_file_path("watlas_teams")

# load meta data
all_tags <- readxl::read_excel(
  paste0(fp, "tags/tags_watlas_all.xlsx"),
  sheet = "tags_watlas_all"
) |>
  data.table()

# subset all tags from 2024
tags <- all_tags[season == 2024]$tag

# select N last days to get data from
days <- 3
from <- (Sys.time() - 86400 * days) |> as.character()
to <- (Sys.time() + 3600) |> as.character()

# load data from database
data <- atl_get_data(
  tags,
  tracking_time_start = from,
  tracking_time_end = to,
  timezone = "CET",
  host = Sys.getenv("host"),
  database = "atlas2024",
  username = Sys.getenv("username"),
  password = Sys.getenv("password")
)

Data explanation

The resulting loaded WATLAS data will be a data.table with the following columns:

# show head of the table
head(data) |> knitr::kable(digits = 2)

posID	tag	time	datetime	x	y	nbs	varx	vary	covxy
1	3027	1695438802	2023-09-23 03:13:22	650692.8	5902549	3	46.97	392.42	126.62
2	3027	1695438805	2023-09-23 03:13:25	650705.6	5902576	3	49.09	460.84	141.21
3	3027	1695438808	2023-09-23 03:13:28	650691.6	5902536	3	58.18	471.81	155.89
4	3027	1695439189	2023-09-23 03:19:49	650728.6	5902571	3	49.97	441.46	138.20
5	3027	1695439192	2023-09-23 03:19:52	650721.0	5902556	3	5.34	28.16	8.58
6	3027	1695439195	2023-09-23 03:19:55	650721.1	5902559	3	5.55	35.03	10.43

Column	Description
posID	Unique number for localizations
tag	4 digit tag number (character), i.e. last 4 digits of the full tag number
time	UNIX time (seconds)
datetime	Datetime in POSIXct (UTC)
x	X-cordinates in meters (UTM 31 N)
y	Y-cordinates in meters (UTM 31 N)
nbs	Number of Base Stations used in calculating coordinates
varx	Variance in estimating X-coordinates
vary	Variance in estimating Y-coordinates
covxy	Co-variance between X- and Y-coordinates

Add species column (or other relevant columns)

If we are working with multiple species, then we can join the species from the metadata. In this case I want the species to be the first row of the table.

# join with data
all_tags[, tag := as.character(tag)]
data[all_tags, on = "tag", `:=`(species = i.species)]

# make species first column
setcolorder(data, c("species", setdiff(names(data), c("species"))))

We can also add other metadata by merging whatever column we want (e.g. color rings and catch location). However, when working with large data sets, it is advised to only add columns that are necessary. This can also always be done whenever needed. This is just an example and Here we delete the columns again.

# join with metal rings, color rings and catch location
all_tags[, tag := as.character(tag)]
data[all_tags, on = "tag", `:=`(
  rings = i.rings,
  crc = i.crc,
  catch_location = i.catch_location
)]

# delete columns
data[, c("rings", "crc", "catch_location") := NULL]

Save data

At this point it might be good to save the raw data, as extrating the data from the database can take a long time with big datasets. A convenient and fast way is to use fwrite from the data.table package. By including yaml = TRUE we make sure the data stays in the same format when we load it again. Change the file path when running this example.

# save data
fwrite(data, file = "../inst/extdata/watlas_data_raw.csv", yaml = TRUE)

Check data

Data summary

Here we simply check for how many individuals we have data and how many positions by tag and date we have.

# load data
data <- fread("../inst/extdata/watlas_data_raw.csv", yaml = TRUE)

# data summary
data_summary <- atl_summary(data, id_columns = c("species", "tag"))

# N individuals with tagging data
data_summary |> nrow()

## [1] 8

# N by species
data_summary[, .N, by = species]

##              species     N
##               <char> <int>
## 1:          redshank     1
## 2:          red knot     1
## 3: bar-tailed godwit     1
## 4:            curlew     1
## 5:     oystercatcher     1
## 6:         turnstone     1
## 7:            dunlin     1
## 8:        sanderling     1

# show head of the table
data_summary |> knitr::kable(digits = 2)

species	tag	n_positions	first_data	last_data	days_data	min_gap	max_gap	max_gap_f	coverage
redshank	3027	15859	2023-09-23 03:13:22	2023-09-23 22:24:26	0.8	3	2523	42 min	0.69
red knot	3038	15959	2023-09-23 00:00:01	2023-09-23 23:59:57	1.0	3	2850	47.5 min	0.55
bar-tailed godwit	3063	12614	2023-09-23 03:27:49	2023-09-23 22:24:55	0.8	3	2541	42.4 min	0.55
curlew	3100	8423	2023-09-23 04:21:46	2023-09-23 21:41:16	0.7	3	16145	4.5 hours	0.41
oystercatcher	3158	12533	2023-09-23 00:00:01	2023-09-23 23:59:57	1.0	3	3060	51 min	0.44
turnstone	3188	10195	2023-09-23 00:00:45	2023-09-23 23:41:50	1.0	3	5742	1.6 hours	0.36
dunlin	3212	3856	2023-09-23 00:00:00	2023-09-23 23:59:56	1.0	8	4784	1.3 hours	0.36
sanderling	3288	8131	2023-09-23 00:00:03	2023-09-23 23:59:54	1.0	6	2622	43.7 min	0.56

Column	Description
species	Species
tag	Tag number
n_positions	Number of positions
first_data	Datetime first localization (UTC)
last_data	Datetime last localization (UTC)
days_data	Days of data
min_gap	Minimum time interval between localizations (interval of the tag in seconds)
max_gap	Maximum time interval between localizations (largest gap in seconds)
max_gap_f	Maximum time interval between localizations (in seconds, minutes, hours, or days)
coverage	Coverage (=1 if every `min_gap` has a localization between `first_data` and `last_data`)

Plot the number of positions by day.

# add date
data[, date := as.Date(datetime)] |> invisible()

# N positions by species and day
data_subset <- data[, .N, by = .(tag, date)]

# plot data
ggplot(data_subset, aes(x = date, y = tag, fill = N)) +
  geom_tile() +
  scale_fill_viridis(
    option = "A", discrete = FALSE, trans = "log10", name = "N positions",
    breaks = trans_breaks("log10", function(x) 10^x),
    labels = trans_format("log10", math_format(10^.x)),
    direction = -1
  ) +
  labs(x = "Date", y = "Tag") +
  theme_classic()

Number of positions per day by tag

Plot overview of the data

Now we want to see the data on a map. With large datasets it is convenient to plot heatmaps, as plotting for example 40 million points would result in a lot of over plotting and makes the plotting slow. If the dataset is small, one can obviously also plot the data by tag number or in other ways (see vignette plotting data).

# create basemap
bm <- atl_create_bm(data, buffer = 800)

# round data to 1 ha (100x100 meter) grid cells
data[, c("x_round", "y_round") := list(
  plyr::round_any(x, 100),
  plyr::round_any(y, 100)
)]

# N by location
data_subset <- data[, .N, by = c("x_round", "y_round")]

# plot heatmap
bm +
  geom_tile(
    data = data_subset, aes(x_round, y_round, fill = N),
    linewidth = 0.1, show.legend = TRUE
  ) +
  scale_fill_viridis(
    option = "A", discrete = FALSE, trans = "log10", name = "N positions",
    breaks = trans_breaks("log10", function(x) 10^x),
    labels = trans_format("log10", math_format(10^.x)),
    direction = -1
  )

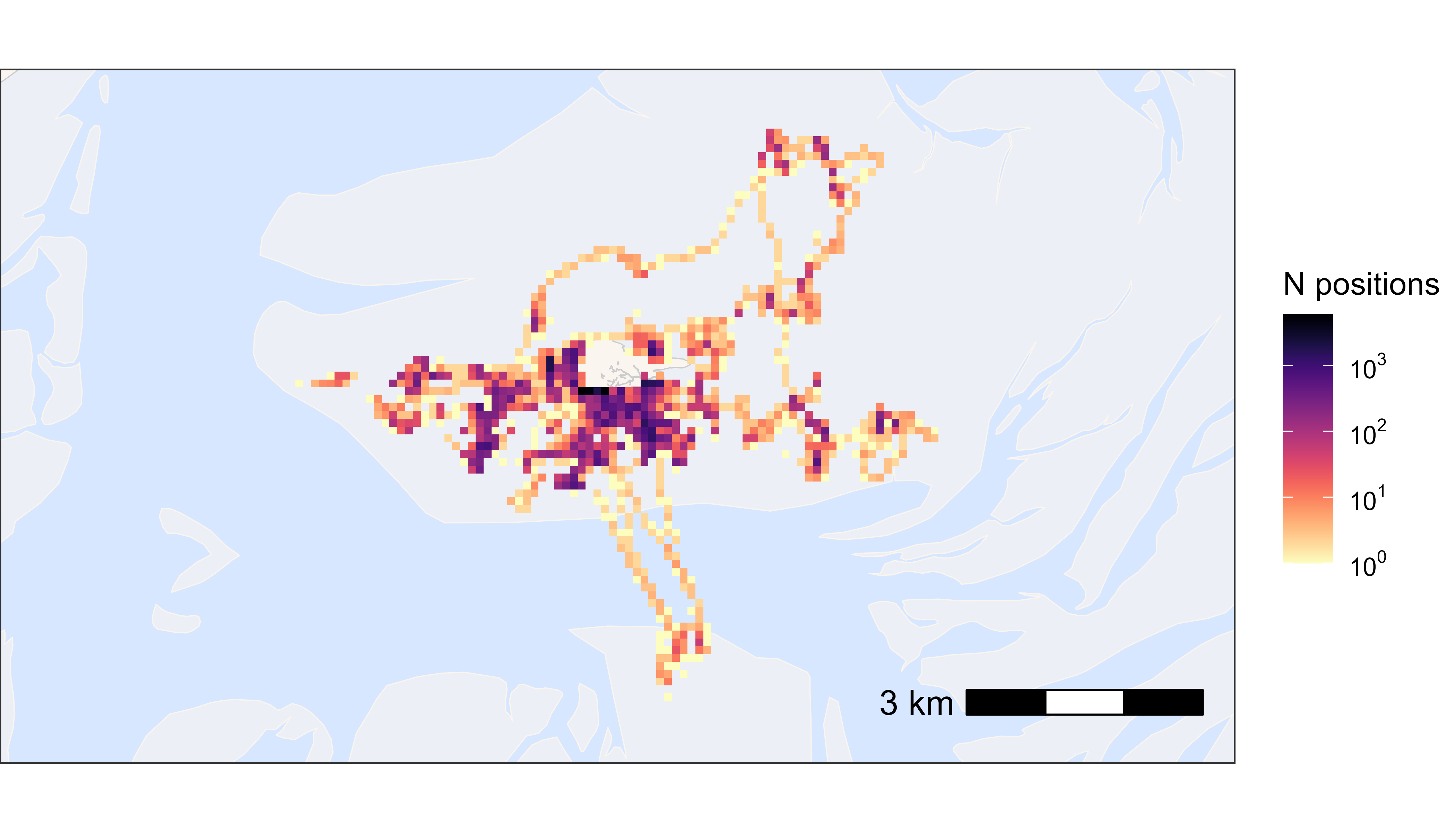

Heatmap of all positions

Johannes Krietsch
